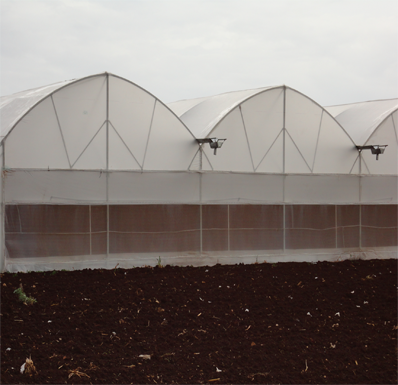

Fan & Pad Greenhouse

  • Stub type anchoring foundations.
  • Multi span structure with 8.0 mtr. x 4.0 mtr. Grid.
  • Tunnel type total galvanized and nut bolted structure with single piece gutter.
  • 4.0 mtr Gutter height & 6.0 mtr ridge height from ground formation level.
  • Fan : 50” Box fan having 21000 CFM air exhaust capacity with SS blade & plastic louvers.
  • Cellulose cooling pads: 100 - 200 mm thick.
  • Humidity and Temperature will be controlled with sensors.
  • One air change is made within 60 seconds.
  • Inside air velocity is maintained up to 0.9 mtr / sec.
  • Entry chamber with anti-leak doors.
  • Top Shadenet can be operated automatically by specially designed motors
